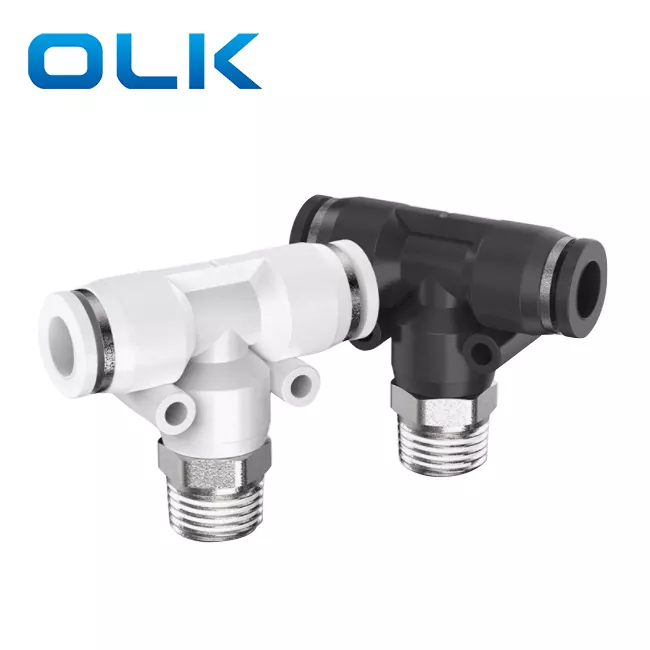

PB Branch Tee Push v cev

Koda za naročanje

Pb

8

-

01

Model

Velikost cevi (metrika)

Vrsta niti (55 ° nit z ravnim cevkom)

PB serije prilega

4: 4mm

01: G1/8

6: 6mm

02: G1/4

8: 8mm

03: G3/8

10: 10 mm

04: G1/2

12: 12 mm

14: 14 mm

16: 16 mm

Tekočina

Zrak/voda (pogojno)/vakuum

Delovni tlak

0-1.0MPA

Vakuumski tlak

-100KPA (10 Torr)

Delovna temperatura

-10-60 ℃

Material

Najlon (PA), poliuretan (PU)

Palčna cev

Metrija cev

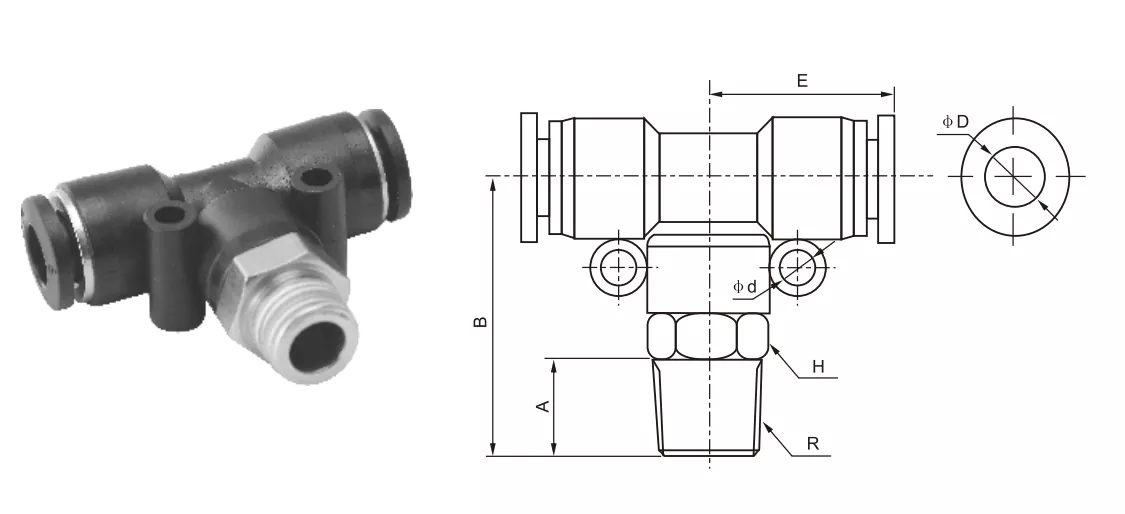

φd

R

A

B

E

H2

φd

PB5/32-M5

PB4-M5

4

M5

4.5

25.4

18.6

10

/

PB5/32-01

PB4-01

4

R1/8

7

25.4

18.6

10

/

PB5/32-02

PB4-02

4

R1/4

9

27.8

18.6

14

/

PB1/4-M5

PB6-M5

6

M5

4.5

26.8

20.8

12

3.5

PB1/4-01

PB6-01

6

R1/8

6.5

37.6

20.8

12

3.5

PB1/4-02

PB6-02

6

R1/4

9

30

20.8

14

3.5

PB1/4-03

PB6-03

6

R3/8

10

30.6

20.8

17

3.5

PB1/4-04

PB6-04

6

R1/2

10

32.5

20.8

21

3.5

PB5/16-01

PB8-01

8

R1/8

8

31.5

22.9

14

4.5

PB5/16-02

PB8-02

8

R1/4

10

33

22.9

14

4.5

PB5/16-03

PB8-03

8

R3/8

10

33.6

22.9

17

4.5

PB5/16-04

PB8-04

8

R1/2

11

35

22.9

21

4.5

PB3/8-01

PB10-01

10

R1/8

8

37

27.8

17

4

PB3/8-02

PB10-02

10

R1/4

10

38

27.8

17

4

PB3/8-03

PB10-03

10

R3/8

10

38

27.8

17

4.5

PB3/8-04

PB10-04

10

R1/2

11

39

27.8

21

4.5

PB1/2-01

PB12-01

12

R1/8

8

37.5

29.5

19

5

PB1/2-02

PB12-02

12

R1/4

10

40

29.5

19

5

PB1/2-03

PB12-03

12

R3/8

10

40

29.5

19

5

PB1/2-04

PB12-04

12

R1/2

11

41

29.5

21

5

PB14-03

16

R3/8

11

46.3

34.5

24

4

PB14-04

16

R1/2

12

47.3

34.5

27

4

Ime/vrsta

Opis strukture vmesnika

Run TEE (PD)

Glavni pretok zraka je raven, veje pa se navpično vodijo

Podružnica (PB)

Dva vmesnika sta povezana pod pravim kotom, eden na veji "T"

Enakovredni majici

Tri vrata z enako velikostjo
